Wallbanger™ DB

Double Barrel Tube Alignment Tool

Misaligned waterwall tubes slow down production, create costly rework and put weld quality at risk. When you're working on critical boiler systems, even minor alignment issues can lead to significant delays and performance problems.

The Wallbanger™ DB clamp is a paired tube alignment tool that helps teams accurately align paired waterwall tubes during fit-up and welding. Designed specifically for double tube applications, this specialized alignment tool eliminates guesswork, improves weld preparation and helps crews achieve precise results without introducing unnecessary stress to the panel.

Whether you're performing repairs or new construction work, the Wallbanger DB delivers the accuracy and consistency demanded by today's industrial standards.

End Misalignment and Rework on Waterwall Panels

Every welder knows the frustration of fighting misalignment. Every project manager understands the cost. When two waterwall tubes fail to line up correctly, crews spend valuable time making adjustments, correcting fit-up issues and reworking welds that should have been completed right the first time.

Generic clamps often fall short in double tube applications. While they may provide some holding force, they are not engineered to precisely align paired tubes. As technicians attempt to force tubes into position, conventional methods can put unnecessary stress on the wall panel, potentially creating more challenges during welding and inspection. These include project delays, budget overruns and the risk of failing to meet code.

In industries where boiler reliability and weld quality directly affect operational performance, precision is not optional. Accurate alignment protects weld integrity, supports efficient workflow and helps ensure compliance with demanding industry standards.

For these high-stakes applications, a purpose-built solution is a necessity.

The Wallbanger DB: A Purpose-Built Dual Tube Welding Clamp

The Wallbanger DB is engineered to overcome the challenges of aligning two waterwall tubes simultaneously.

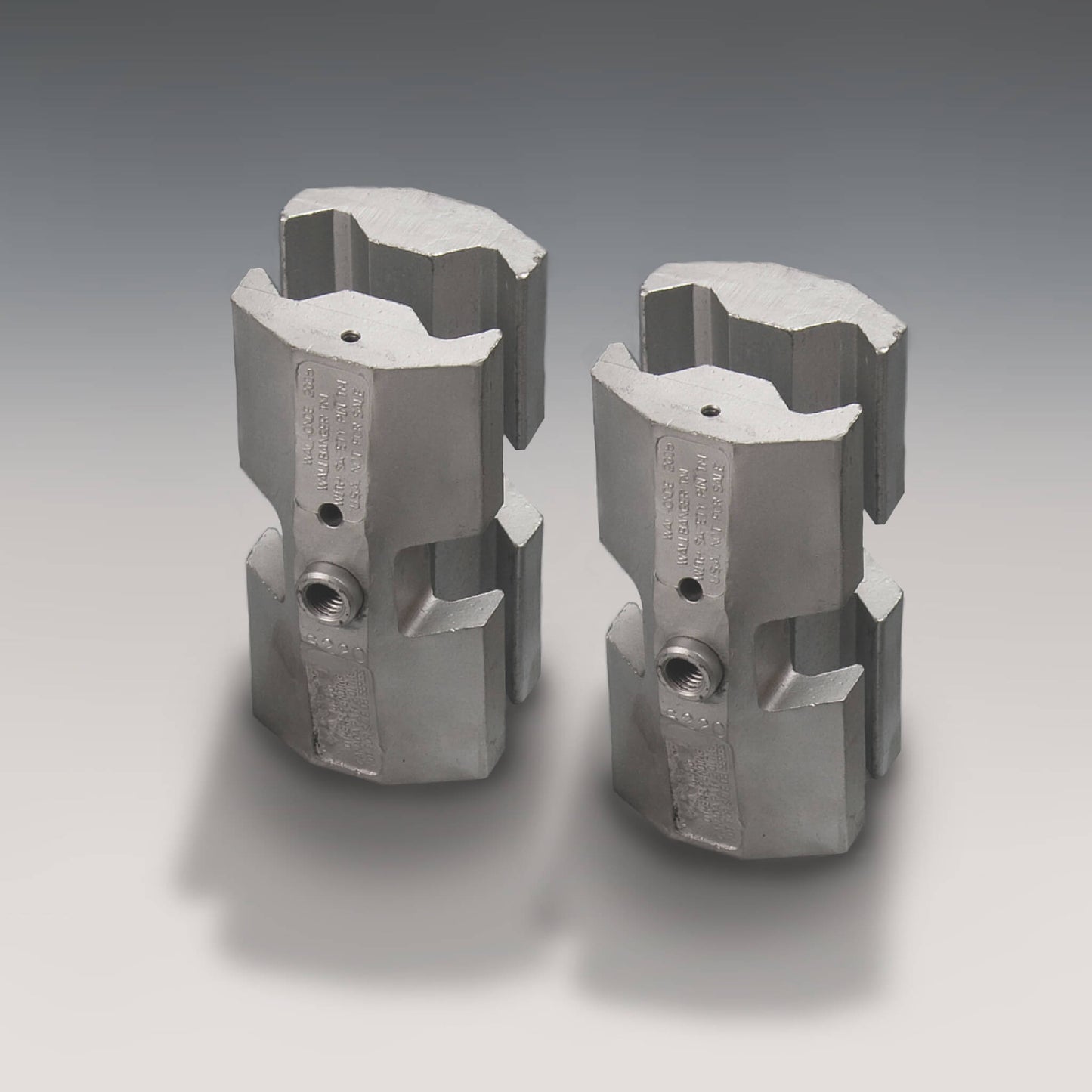

At the heart of the tool is Walhonde Tools' patented double barrel design. Two precision-machined interlocking plates fit together around the tubes, forming a rigid structure that securely grips both tubes simultaneously. Once installed, the assembly applies a controlled force to quickly and accurately align the tubes.

This design allows technicians to achieve a precise fit-up without overstressing surrounding components. Instead of struggling with makeshift solutions or multiple clamps, crews can install the Wallbanger DB and align both tubes.

Each Wallbanger DB includes two matching alignment plates and fastening bolts, providing everything needed to perform fast, reliable tube alignment in the field. The result is a more efficient fit-up process, improved weld preparation and greater consistency across every project.

Features and Specifications

The Wallbanger DB combines rugged construction with practical functionality to help crews work faster and achieve better results. Key benefits include:

• Precisely aligned waterwall tubes
• Reduced fit-up time and welding delays
• Minimal stress on waterwall panels during alignment
• Improved weld preparation and overall weld quality
• Two alignment plates and fastening hardware
• Availability in multiple standard sizes with custom options

Standard and Custom Sizes for Any Boiler

Waterwall systems vary widely across facilities, which is why the Wallbanger DB is available in several standard configurations:

• 7/8" on 1.5" centers
• 1" on 1.5" centers
• 1 1/8" on 1 5/8" centers
• 1 1/4" on 1 3/4" centers
• 1 1/2" on 2" centers
• 1 3/4" on 2 1/4" centers

Need a different configuration? Walhonde Tools can manufacture custom sizes to match your application needs. We offer a typical turnaround of about two to eight weeks for custom projects.

Designed for Critical Industries

The Wallbanger DB is trusted in some of the world's most demanding industrial environments, where precision, reliability and safety are essential. These industries include:

• Power generation
• Paper mills
• Oil and gas
• Nuclear facilities
• Petrochemical processing
• Aerospace manufacturing
• Shipbuilding

From routine maintenance outages to large-scale construction projects, the Wallbanger DB provides the performance professionals depend on when alignment and accuracy matter most.

The Walhonde Tools Advantage

For over 40 years, Walhonde Tools has focused on developing innovative solutions for welding and boiler maintenance professionals. Our commitment to practical engineering and field-proven performance has resulted in numerous patented products used throughout the industry.

Walhonde Tools remains one of the very few manufacturers to produce a dedicated waterwall dual tube clamp. This specialized expertise enables us to deliver solutions tailored to the challenges technicians face in the field.

Every Wallbanger DB is proudly made in the USA and manufactured to meet the high standards our customers expect. When you choose Walhonde Tools, you're investing in proven equipment backed by decades of industry experience and a commitment to quality craftsmanship.

Secure Your Wallbanger DB and Improve Weld Joint Integrity

Equip your team with the tool designed specifically for double tube alignment.

Request a quote today and get the right tool for the job.

Have questions or need a custom size? Call us at 304-756-3834 to speak with an alignment expert.
