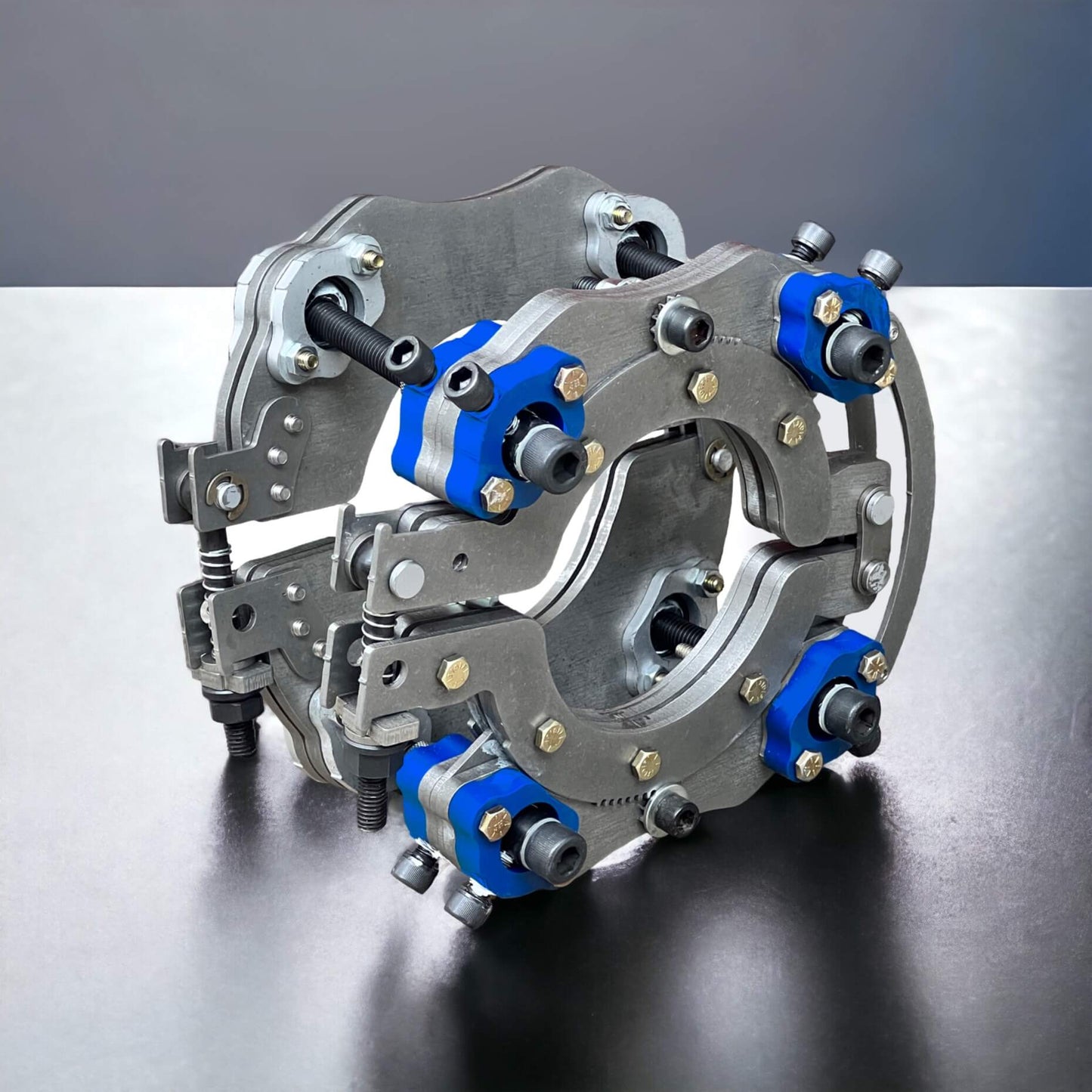

Top Liner Elite

Precision Pipe Alignment Clamp

Every pipefitter knows the frustration. You complete a fit-up, verify alignment and then spot a slight rotational error. Suddenly, a seemingly minor adjustment turns into a costly interruption. You break the fit-up, reposition the pipe, realign the joint and repeat the process until everything falls into place.

Walhonde Tools' Top Liner™ Elite is a pipe clocking tool that eliminates that problem.

Designed for light- to medium applications, this precision pipe alignment clamp features a patented 10-degree clocking mechanism that allows controlled radial rotation while maintaining alignment. Instead of dismantling your setup to correct rotational positioning, you can make precise adjustments on the first try.

Start Clocking With Our Rotational Pipe Alignment Tool

Small rotational errors can create major setbacks.

A pipe may appear perfectly aligned only to have the orientation slightly off when it's time to weld. Without the ability to make controlled rotational adjustments, crews often have no choice but to loosen the setup, reposition the pipe and restart the alignment process. That extra work slows production, increases labor costs and creates unnecessary frustration in the field.

The Top Liner Elite solves this challenge with its innovative clocking system.

How It Works

The integrated mechanism offers up to 10 degrees of radial rotation to the left or right, allowing operators to fine-tune positioning without sacrificing alignment. This level of control helps bridge the gap between “close enough” and “perfect.”

Instead of settling for an imperfect fit-up or restarting the process, you can make targeted corrections with confidence. The ability to adjust rotational orientation while maintaining alignment gives welders and pipefitters greater control over every joint, helping deliver cleaner results in less time.

When precision matters, the Top Liner Elite helps you get it right the first time.

Master 4 Critical Fit-Ups With One Tool

The Top Liner Elite is engineered for more than standard pipe-to-pipe alignment.

Its versatile design lets crews handle multiple fit-up configurations with a single tool, reducing the need for additional equipment on the jobsite. Whether you're working in fabrication, maintenance, construction or plant shutdown environments, the Top Liner Elite adapts to a wide range of requirements.

Applications include:

• Pipe-to-Pipe
• Pipe-to-Elbow (90°)
• Pipe-to-Tee
• Pipe-to-Weld-Neck-Flange

Watch this video to see the Top Liner Elite in action.

Top Liner Elite: Technical Specifications

The Top Liner Elite's flexibility helps streamline workflows, improve productivity and simplify complex alignment tasks with these specs:

• Application range: Available in sizes from 2 inches to 12 inches (DN50–DN300).
• Alignment capability: External pipe alignment clamp.
• Clocking mechanism: Patented 10-degree radial rotation left or right.
• Design: Compact, field-friendly construction made from carbon steel with stainless steel contact points.
• Project type: Ideal for light- to medium-duty pipe alignment applications.
• Manufacturing: Made in the USA.

Proven Performance in Demanding Industries

Industries that rely on pipe systems demand accuracy, consistency and dependable equipment. The Top Liner Elite helps professionals meet those expectations by combining reliable alignment performance with precise rotational control.

The clamp supports fit-up operations across a wide range of demanding sectors, including:

• Oil and gas
• Nuclear
• Aerospace
• Naval and land-based shipbuilding
• Heavy industrial construction

For over 40 years, Walhonde Tools has supplied pipe and tube alignment solutions trusted by professionals who refuse to compromise on quality. Every tool is built with a focus on productivity, durability and real-world performance in challenging working environments.

Get a Quote on the Industry’s Most Accurate Pipe Alignment Clamp

Stop wasting valuable time breaking fit-ups to make minor rotational adjustments.

The Top Liner Elite gives you the control, precision and efficiency you need to complete accurate alignments faster. With its patented clocking mechanism and versatile fit-up capabilities, it's the ideal solution for professionals who demand better results for every project.

Request your quote today.

Have questions or need a custom solution? Call us at 304-756-3834.
