Top Liner: A Pipe Alignment

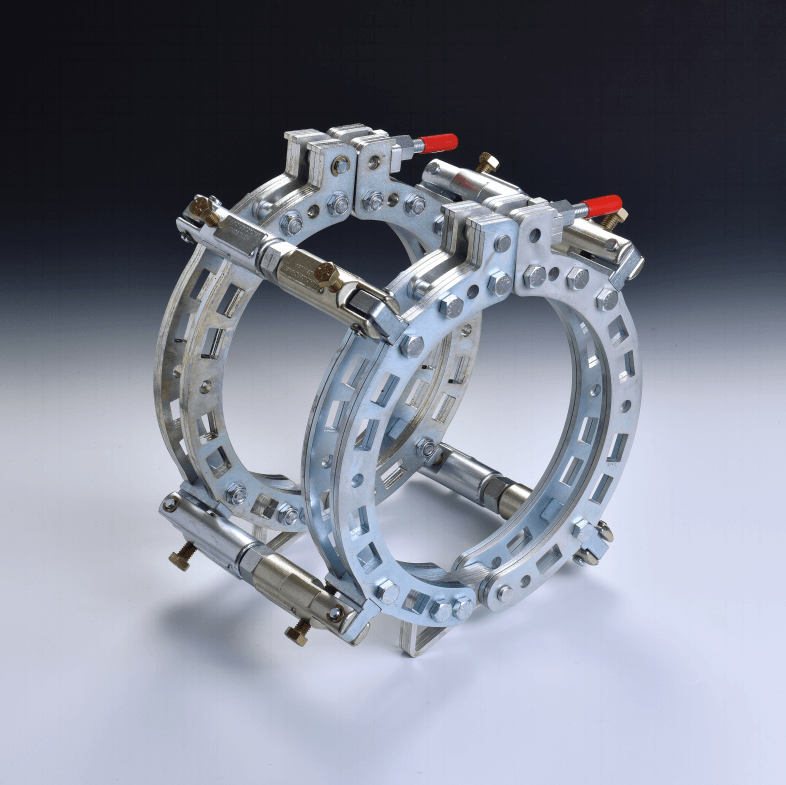

The Top Liner pipe clamp quickly and accurately aligns heavy-wall & thin-wall pipe.
This pipe alignment clamp reduces repair from having to weld bridges and dogs.
Available as a Pipe-to-Pipe unit or Pipe-to-Elbow unit.
On sizes 2″ thru 22″, we have two versions of the Top Liner pipe clamp to fit either Pipe-to-Pipe or Pipe-to-Elbow.
Available in Carbon Steel, Aluminum, and Stainless Steel.
KEY ADVANTAGES OF THIS PIPE ALIGNMENT CLAMP
• High-low adjustment
• Gap spacing adjustment
• Rounds out pipe on sch. 40 & below
• Works on heavy-wall pipe
• Increase productivity
• Improve quality control
• Enhance safety
| Product # | Size | Dimensions | Weight |
|---|---|---|---|
| TopLiner™-4 | 4″ | 9 x 8 Inch | 18 lbs |
| TopLiner™-5 | 5″ | 9 x 8 Inch | N/A |
| TopLiner™-6 | 6″ | N/A | 38 lbs |
| TopLiner™-8 | 8″ | N/A | 42 lbs |
| TopLiner™-10 | 10″ | 18.5 x 12 Inch | 58 lbs |
| TopLiner™-12 | 12″ | N/A | 64 lbs |
| TopLiner™-14 | 14″ | N/A | 67 lbs |
| TopLiner™-16 | 16″ | N/A | 72 lbs |
| TopLiner™-18 | 18″ | N/A | 85 lbs |
| TopLiner™-20 | 20″ | N/A | 100 lbs |
| TopLiner™-24 | 24″ | N/A | 110 lbs |
| TopLiner™-30 | 30″ | N/A | N/A |
| TopLiner™-36 | 36″ | N/A | 150 lb |
| TopLiner™-42 | 42″ | N/A | N/A |
| TopLiner™-48 | 48″ | N/A | N/A |
| TopLiner™-42 | 42″ | N/A | N/A |
| TopLiner™-48 | 48″ | N/A | N/A |
Product Specification
| Size | 4″ |
| Dimensions | 9 x 8 Inch |
| Weight | 18 lbs |
| Rental & Sales | Walhonde offers a full range of boiler tube alignment tools on a weekly rental basis. The tool rental benefits our customers by allowing Walhonde to inventory and maintain tools, ready for next day delivery to most projects in the USA. Our pipe alignment tools are offered on a rental basis or sale. We are always ready to assist our customers with on-the-job training upon request. |
Quickly and accurately aligns heavy-wall single tube & header. Acts as bridging on heavy-wall headers. Weld only where you are supposed to weld. Reduce repair from welding bridging and dogs.
Custom sizes available upon request. Lead time will be required.
